Property Graphs

Overview

From the Wikipedia, a property graph, labeled property graph, or attributed graph is a data model, where pairs of entities are associated by relationships, and entities and relationships can have properties.

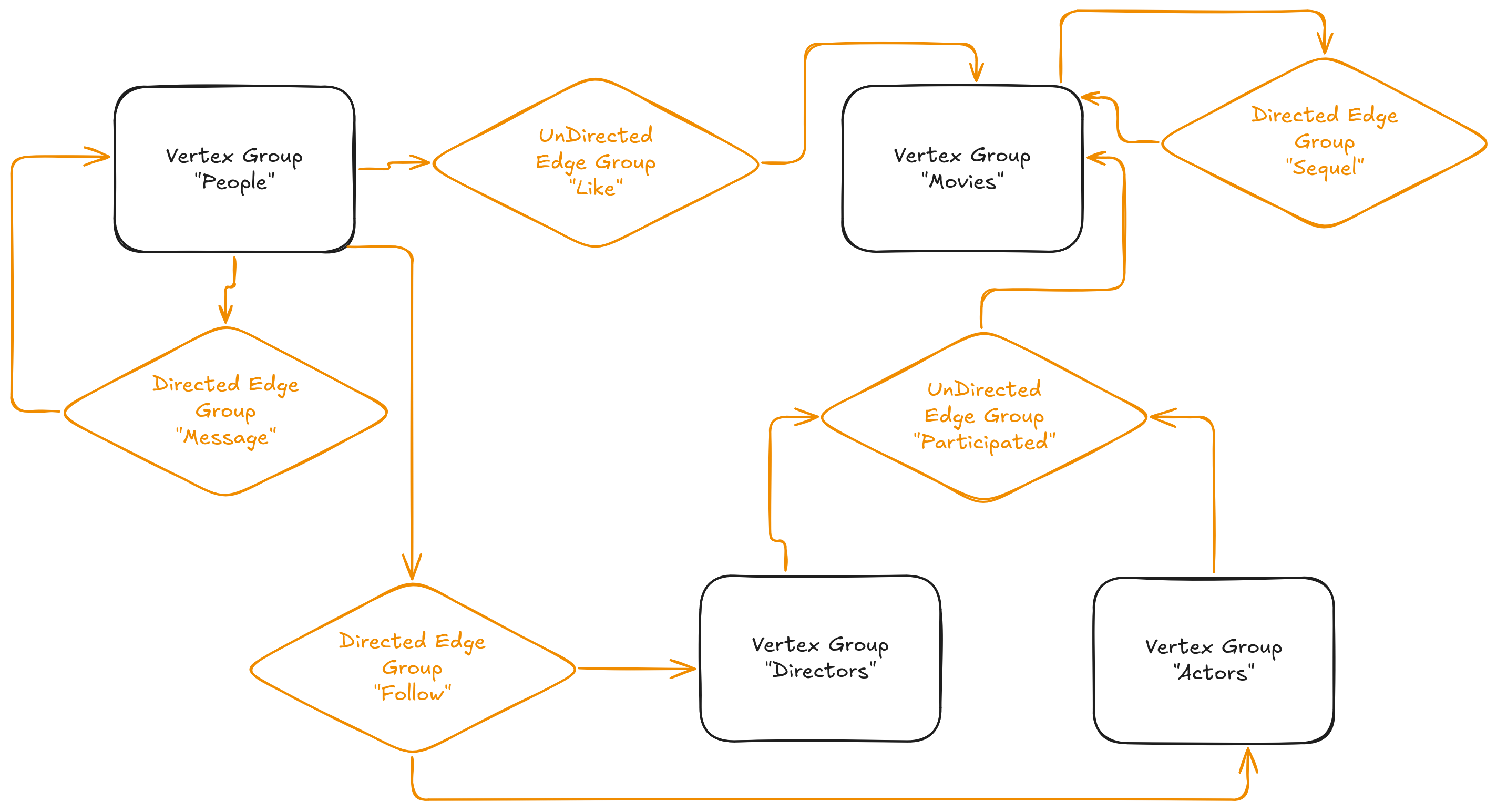

To make this concrete, let's imagine an example of the “movie fan social network.” The diagram above shows how this looks as a property graph. There are people and movies – two types of vertices, each with their own properties. People can like movies (undirected edges), send messages to each other (directed edges), and follow directors. There are also actors and directors as separate vertex types. Movies can be connected as sequels. All these relationships and entities are easy to represent in a property graph, as shown in the diagram.

The property graph model is very universal. Take a banking payments network: there are legal entities, government services, individuals, exchanges, and goods. Each is a different vertex type. Payments are directed, weighted edges with properties like date and amount. Two legal entities sharing a board member form an undirected, unweighted edge with the director’s details as properties. This structure is great for compliance, KYC, and anti-fraud. It helps to see who is connected to whom and how closely.

Or consider an online marketplace. There are buyers, sellers, and products. Buyers purchase products from sellers. Sellers offer many products. All of this fits naturally into a property graph. This structure works well for recommendation systems. Recommending a product is basically a link prediction problem in the graph.

Another example is Organizational Network Analysis (ONA). Companies have departments, teams, and people, all connected in different ways. Teams assign tasks to each other. People have both formal and informal relationships. There are official and real hierarchies. ONA can reveal key employees, process bottlenecks, and even predict conflicts. It also helps improve knowledge sharing across the organization.

Property Graphs in GraphFrames

GraphFrames represent a property graph as a combination of multiple logical structures named Vertex Property Group linked by multiple logical structures named Edge Property Group.

Vertex Property Group

For API details see org.graphframes.propertygraph.property.VertexPropertyGroup. It contains a name of the property group, for example, movies, a name of ID column and underlying data in the form of a DataFrame.

The simple example below creates two property groups: people and movies.

import org.graphframes.propertygraph.property.VertexPropertyGroup

val peopleData = spark
  .createDataFrame(
    Seq((1L, "Alice"), (2L, "Bob"), (3L, "Charlie"), (4L, "David"), (5L, "Eve")))
  .toDF("id", "name")

val peopleGroup = VertexPropertyGroup("people", peopleData, "id")

val moviesData = spark
  .createDataFrame(Seq((1L, "Matrix"), (2L, "Inception"), (3L, "Interstellar")))
  .toDF("id", "title")

val moviesGroup = VertexPropertyGroup("movies", moviesData, "id")

Edge Property Group

For API details see org.graphframes.propertygraph.property.EdgePropertyGroup. It contains a name of the property group, links to the source and target vertex property groups, direction of the edges (directed or undirected), and underlying data in the form of a DataFrame. Optionally, it can contain a column with edge weights as well as names of source and target vertex ID columns.

The simple example below creates an edge property group with the name likes and links to the people and movies vertex property groups as well as messages property group that links people to people.

import org.graphframes.propertygraph.property.EdgePropertyGroup

val likesData = spark
  .createDataFrame(Seq((1L, 1L), (1L, 2L), (2L, 1L), (3L, 2L), (4L, 3L), (5L, 2L)))
  .toDF("src", "dst")

val likesGroup = EdgePropertyGroup(
  "likes",
  likesData,
  peopleGroup,
  moviesGroup,
  isDirected = false,
  "src",
  "dst",
  lit(1.0))

val messagesData = spark
  .createDataFrame(
    Seq((1L, 2L, 5.0), (2L, 3L, 8.0), (3L, 4L, 3.0), (4L, 5L, 6.0), (5L, 1L, 9.0)))
  .toDF("src", "dst", "weight")

val messagesGroup = EdgePropertyGroup(
  "messages",
  messagesData,
  peopleGroup,
  peopleGroup,
  isDirected = true,
  "src",
  "dst",
  col("weight"))

Property GraphFrame

Having defined the property groups, we can create a PropertyGraphFrame by passing the property groups to the constructor.

import org.graphframes.propertygraph.PropertyGraphFrame

peopleMoviesGraph =
  PropertyGraphFrame(Seq(peopleGroup, moviesGroup), Seq(likesGroup, messagesGroup))

Conversion to GraphFrames

The PropertyGraphFrame can be converted to a GraphFrame by calling toGraphFrame. Users can select a subset of vertex and edge property groups to be included in the resulting GraphFrame. Under the hood, the conversion will take care about handling potential vertex and edge ID collisions by applying hashing to both vertex and edge IDs.

val graph = peopleMoviesGraph.toGraphFrame(
  Seq("people"),
  Seq("messages"),
  Map("messages" -> lit(true)),
  Map("people" -> lit(true)))

For more details see org.graphframes.propertygraph.PropertyGraphFrame.

This operation is not free, so user can also explicitly specify for each of VertexGroup does it need to be hashed or not.

val moviesData = spark
  .createDataFrame(Seq((1L, "Matrix"), (2L, "Inception"), (3L, "Interstellar")))
  .toDF("id", "title")

val moviesGroup = VertexPropertyGroup("movies", moviesData, "id", applyMaskOnId = false)

Projection

The PropertyGraphFrame support projection of edges groups to a new edge group. For example, if we have a property graph, where people can like movies, we can do a projection of such a bi-graph to a graph of only peoples where two people are connected if they like the same movie. This operation creates a new PropertyGraphFrame with a new edge group and without the original edge group through which the projection was done.

val projectedGraph = peopleMoviesGraph.projectionBy("people", "movies", "likes")
